Steam Trap Valve

• Application
• Automatic discharge of condensate in steam lines, heat exchangers, or steam equipment

• Connection Type
• Screwed, Flanged, Socket Welded

• Control System
• Mechanical (float controlled)

• Disc
• Not applicable (uses float and valve system)

• Features
• Works efficiently for light and heavy condensate loads, Continuous discharge, Resistant to water hammer

• Material
• Cast Iron/Carbon Steel/ Stainless Steel body options

• Media
• Other, Steam and Condensate

• Pin
• Stainless Steel or equivalent

• Port Size
• 15 mm to 50 mm (can vary as per model)

• Power
• Other, Not required (mechanical device)

• Pressure
• Other, Up to 16 bar (varies as per specific model)

• Sealing
• Metal to metal or soft seat for tight shut-off

• Structure

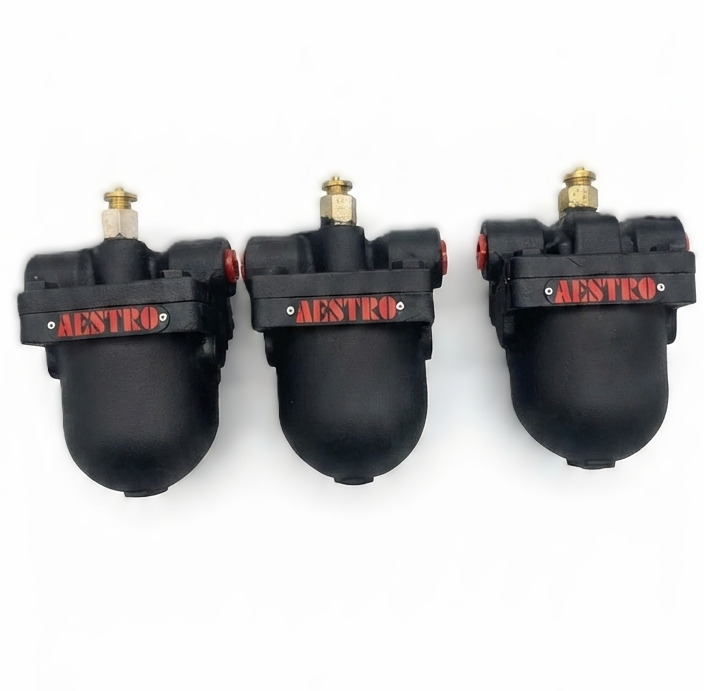

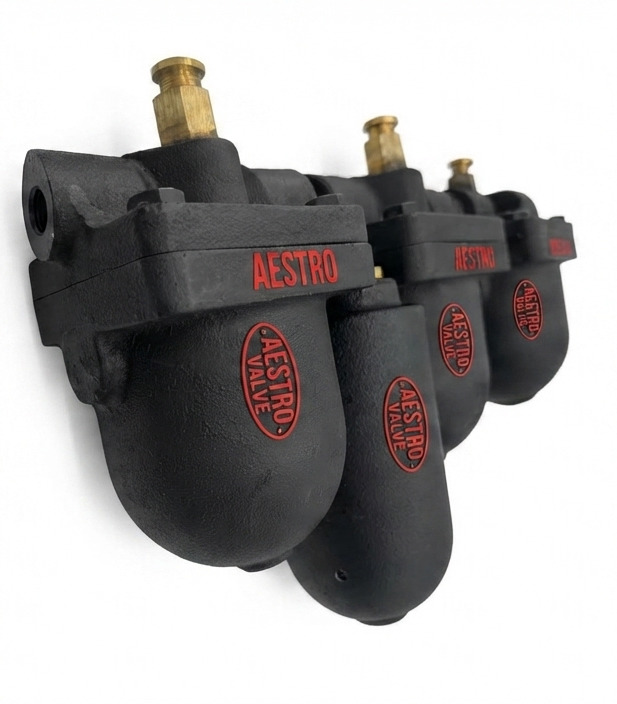

• Other, Ball Float Type

• Temperature
• Up to 220C (typical operating limits)

• Type
• Mechanical Steam Trap

• Valve Size
• 1/2 to 2 (DN15 to DN50)

• Valve Type
• Steam Trap Valve

• Application
• Steam & condensate removal in pipelines and process equipment

• Connection Type

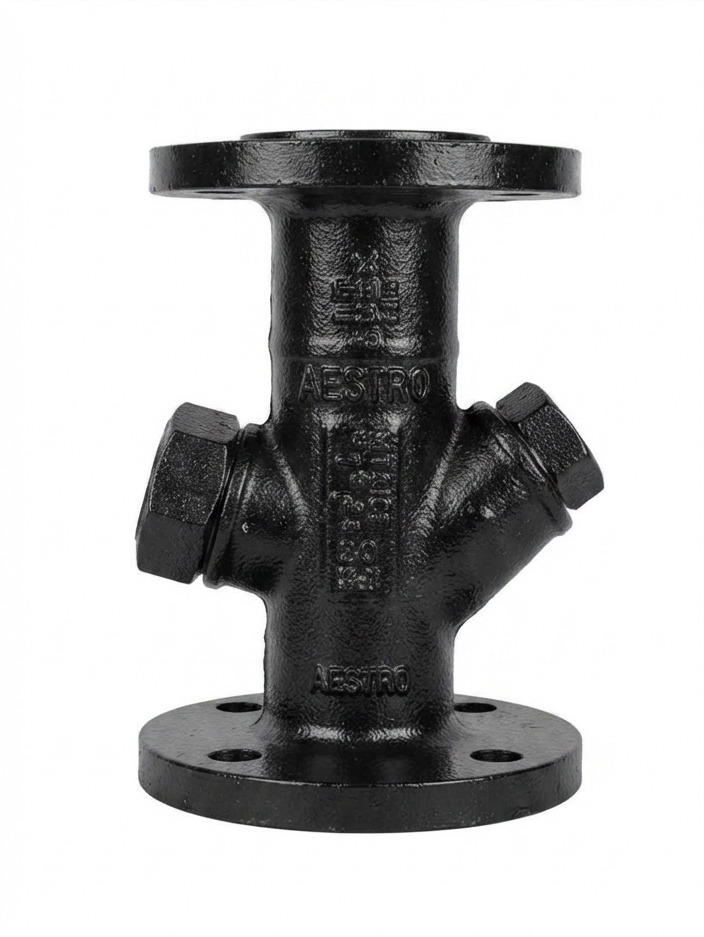

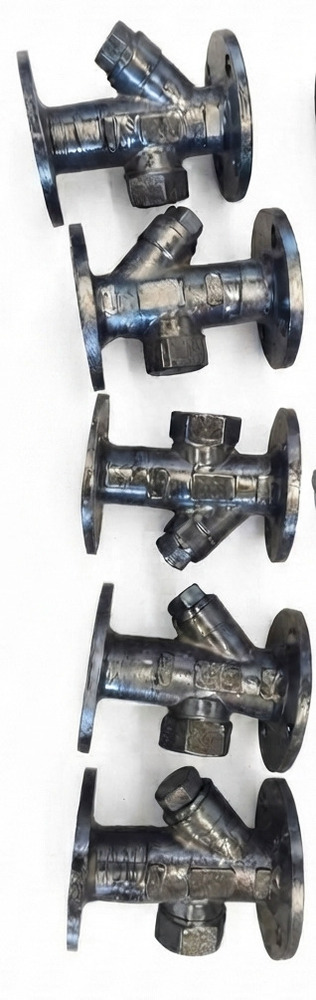

• Flanged Ends (ANSI, DIN, BS standards)

• Control System
• Mechanical (No external control system required)

• Disc
• Hardened Stainless Steel

• Features
• Robust construction, corrosion resistant, easy maintenance, pressure balancing disc

• Material
• Cast Iron / Cast Steel / Stainless Steel

• Media
• Other, Steam, condensate

• Port Size
• 15 mm to 100 mm (1/2 to 4)

• Power
• Other, None (Mechanical operation)

• Pressure
• Other, Up to 40 bar (580 psi)

• Sealing
• Metal-to-metal seat

• Structure
• Other, Y-type Flanged Body

• Temperature
• Up to 425C (797F)

• Type
• Thermodynamic Steam Trap Valve

• Valve Size
• DN15, DN20, DN25, DN40, DN50, DN80, DN100

• Valve Type
• Steam Trap Valve

• Application
• Steam Systems, Condensate Removal

• Connection Type
• Threaded (BSP/NPT)

• Control System
• Thermodynamic / Mechanical (as per design)

• Disc
• Integrated Stainless Steel/AISI as per model

• Features
• Corrosion Resistant, Energy Saving, Maintenance Friendly

• Material
• Cast Iron/Carbon Steel (Body), Stainless Steel (Internal)

• Media
• Other, Steam, Condensate

• Port Size
• 1/2 to 2 BSP/NPT Threaded

• Power
• Other, Manual / Mechanical

• Pressure
• Other, Up to 25 bar (range may vary)

• Sealing
• Metal to Metal

• Structure
• Other, Y-Type Body

• Temperature
• Up to 220C (typical)

• Type
• Mechanical Steam Trap Valve

• Valve Size
• Varies (Standard: 15 mm to 50 mm)

• Valve Type
• Steam Trap Valve
