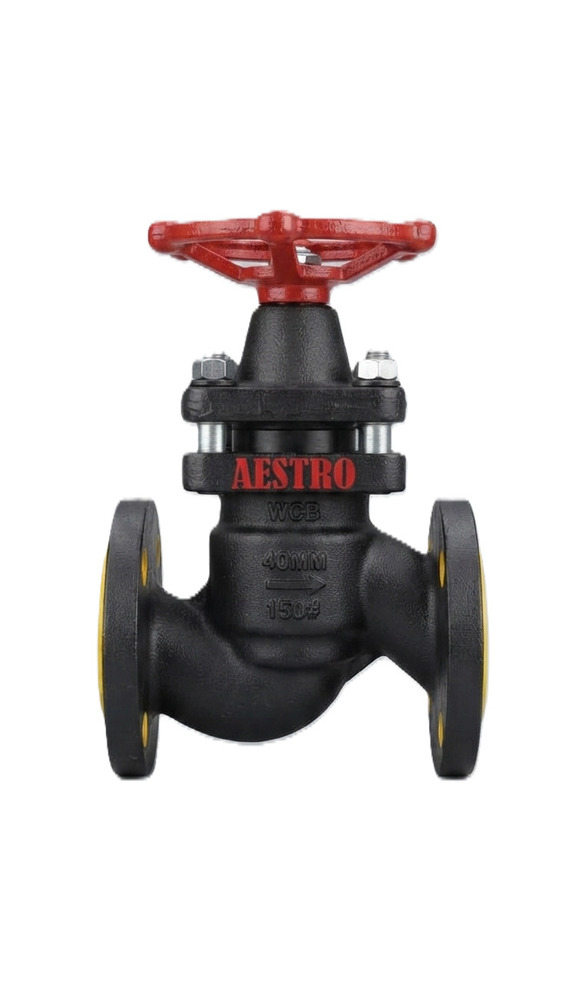

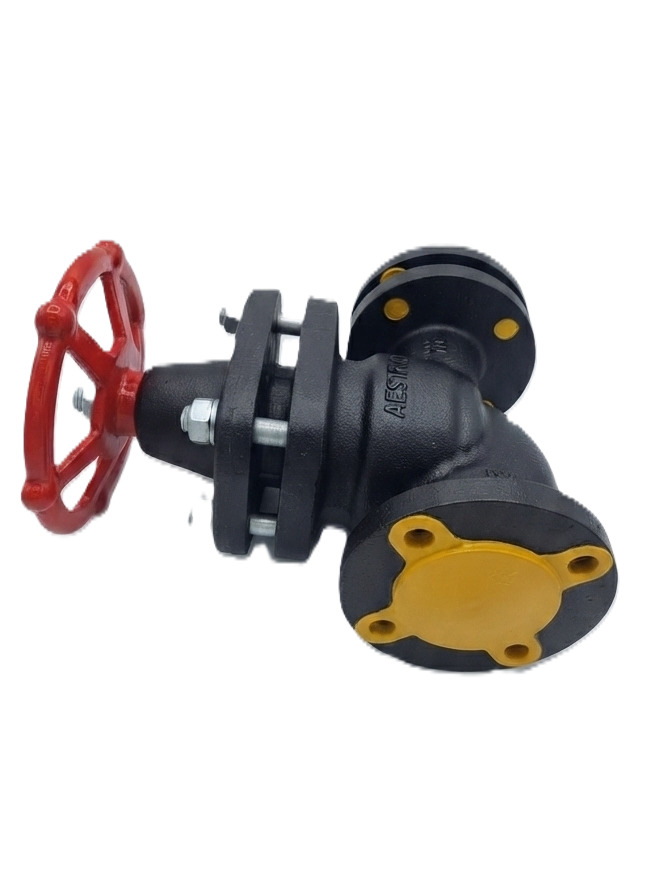

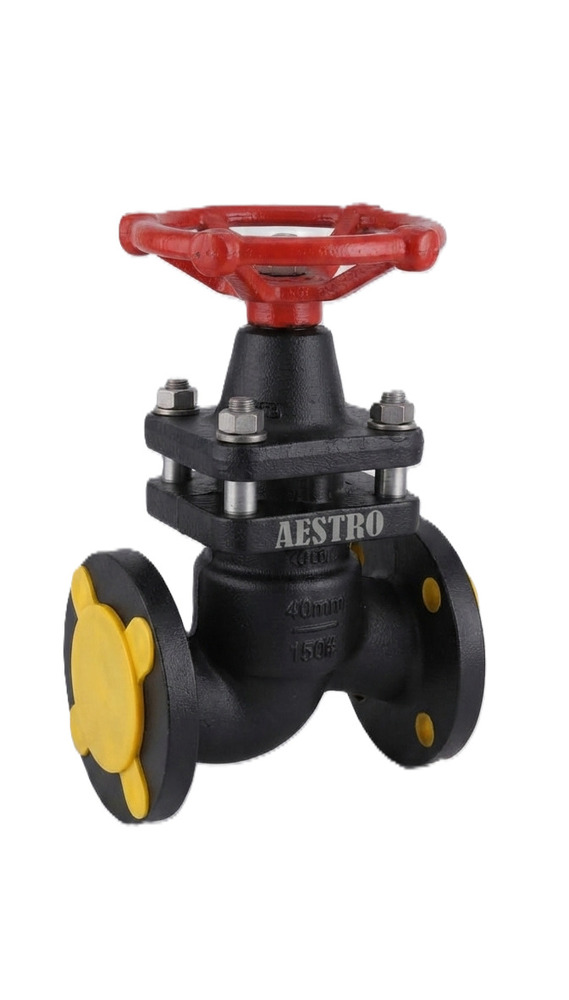

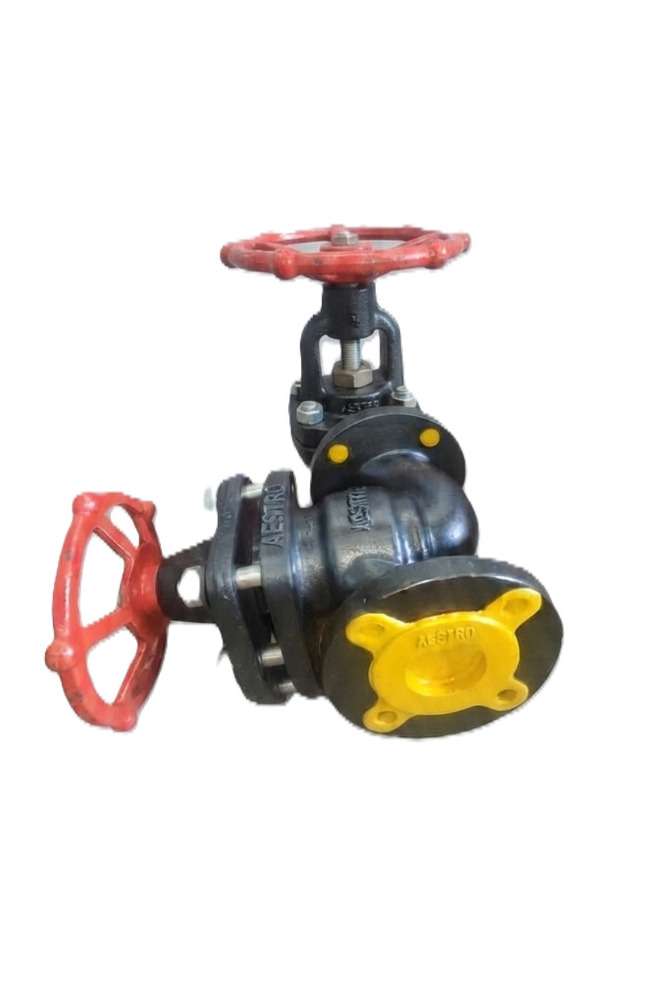

Piston Valve

Get a Price/Quote

MOQ : 1 Unit

Piston Valve Specification

Operating Pressure
PN16 / Class 150 (16 bar / 150 psi)

Operating Temperature
Up to 200C

Hardness
Up to 250 HB

Valve Type
Piston Valve

Material Grade
IS:210 Gr. FG 260 / ASTM A216 Gr. WCB / CF8M SS 316

Designed For
Isolation/On-Off Service for Steam, Water, Gas, Oil, and Chemical Applications

Coating Type
Epoxy Powder Coating / Painted

Material
Cast Iron / Cast Steel / Stainless Steel

Lubrication Type
Self-lubricated / Grease Lubricated

Valve Size
15 mm to 300 mm (1/2 to 12)

Surface Finish
Black Painted / Epoxy Coated

Mounting Type
Flanged Ends

Usage & Applications
Water, Steam, Oil, Gas, and Chemical Industries

Head Diameter
Standard as per manufacturer design

Stem Material
Stainless Steel

Gland Packing
PTFE / Graphite packing

Operation
Manual Handwheel Operated

Weight
Varies with size and material (approx. 8-70 kg)

Leakage Class
Class VI Leak Tight Shut-off

Connection Type
Flanged to ANSI/BS/DIN Standards

Body Test Pressure
24 bar

Flow Media
Corrosive and Non-Corrosive Media

Disc Type
Piston / Spindle Type

ISO Certification
ISO 9001:2015 Certified

Corrosion Resistance
High corrosion resistance for chemical media

Bonnet Type
Bolted Bonnet

Body Material Thickness
As per IS/ASTM Standards

End Connection Standard
ASME B16.5 / IS 1538

Seat Test Pressure
17.6 bar

Number of Ports
2

Piston Valve Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Piston Valve

Experience the distinguished reliability of our Piston Valve, meticulously crafted with masterful engineering and top-grade Stainless Steel stem. Designed for isolation or on-off service, it is ideal for handling both corrosive and non-corrosive media, thanks to its high corrosion resistance. With an ephemeral availability and limited stock, this first-string solution features a bolted bonnet, flanged ANSI/BS/DIN connections, and Class VI leak tight shut-off, ensuring maximum safety. Utilise this offer today and enhance your operations with an ISO 9001:2015 certified, self-lubricated, and epoxy-coated valve, available in various material and size specifications.

The Versatility of Piston Valve: Usage and Applications

Piston Valves are a preferred choice for the isolation and on-off service of media such as water, steam, oil, gas, and chemicals. With their masterful design and robust construction, these valves are suitable for high-pressure environments. Key features include Class VI leak tightness, high corrosion resistance, precision PTFE/Graphite gland packing, and self or grease lubrication. Their first-string performance is trusted in power plants, chemical industries, refineries, and water treatment facilities, making them ideal for challenging industrial applications.

Piston Valve Payment Terms, Sample Availability, and Shipping

We offer flexible payment terms for our distinguished Piston Valve range, catering to your project's budget and needs. Sample products are available on request to help you verify specifications before purchase. List prices are competitive, and goods can be quickly dispatched via express shipping from our FOB port in India. Each shipment is meticulously tracked to ensure you receive your shipped goods promptly and safely, giving you confidence throughout the procurement process.

FAQ's of Piston Valve:

Q: How do I know which size of Piston Valve suits my application?

A: Selecting the correct size depends on your flow rate, media type, and pressure requirements. Our valves are available in sizes ranging from 15 mm to 300 mm, ensuring compatibility with most industrial systems.

Q: What are the main benefits of utilising a Piston Valve in industrial environments?

A: Piston Valves provide high corrosion resistance, Class VI leak tightness, and reliable shut-off performance, making them ideal for use with water, steam, oil, gas, and aggressive chemicals.

Q: Where can these Piston Valves be used?

A: These valves are suited for power plants, chemical industries, oil and gas facilities, water treatment plants, and general industrial applications requiring isolation or on-off service.

Q: What process should I follow to request a sample Piston Valve?

A: Contact our sales team with your requirements. Samples can be arranged prior to ordering, allowing you to test the fit and functionality for your project.

Q: How quickly can I receive my Piston Valve after ordering?

A: With express shipping options, your goods can be shipped promptly from the FOB port in India, helping to minimize downtime for your operation.
