Check Valve

• Application
• Industrial, Water, Steam, Oil & Gas, HVAC systems

• Connection Type
• Wafer (Fits between Flanges - ANSI, DIN, JIS)

• Control System
• None (Operates Automatically by Flow)

• Disc
• Stainless Steel, Ductile Iron, Aluminum Bronze

• Features
• Compact Design, Low Pressure Drop, Lightweight, Easy Installation, Spring-Loaded Plates, Wafer Style, Long Service Life

• Material
• Ductile Iron, WCB, Stainless Steel, Cast Iron (Body & Disc Options)

• Media
• Other, Water, Oil, Air, Gas, Other Non-corrosive Fluids

• Pin
• Dual Plate/Hinge Pin Design

• Port Size
• Available from 2 to 24 (DN50 to DN600)

• Power
• Other, Manual (No External Power Required)

• Pressure
• Other, PN10, PN16, PN25/Class 150

• Sealing
• EPDM, NBR, Viton, Metal-to-Metal (based on variant)

• Structure
• Other, Wafer Type

• Temperature
• -10C to 200C (Depending on Material)

• Type

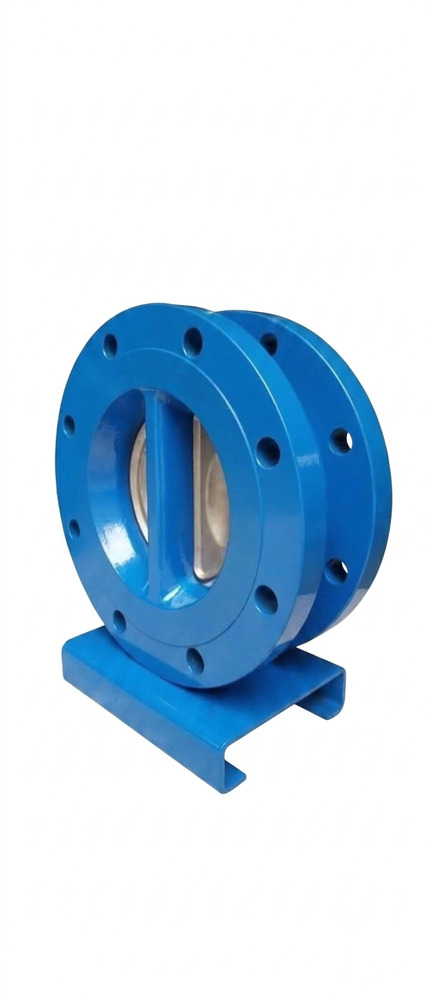

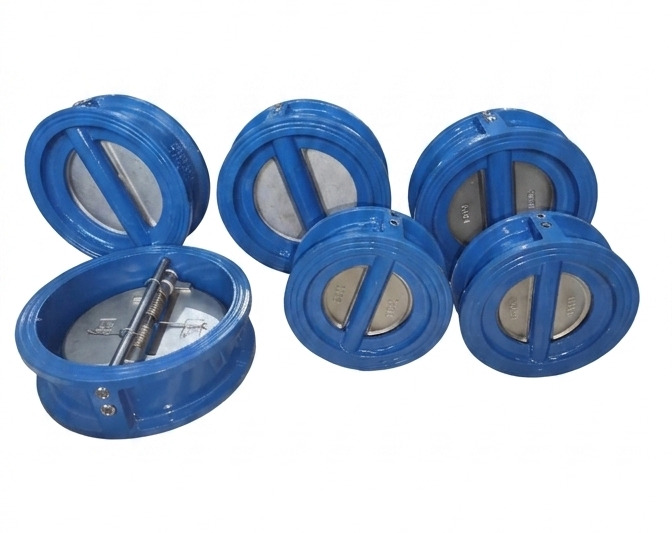

• Dual Plate Check Valve

• Valve Size
• 50 mm to 600 mm (2 to 24)

• Valve Type
• Non-Return Check Valve

• Application
• Suitable for preventing backflow in pipelines for water, steam, oil, and gas applications

• Connection Type
• Wafer Type, fits between flanges

• Control System
• Self-acting, No External Control

• Disc
• Single Disc, Spring Loaded

• Features
• Compact Design, Low Pressure Drop, Maintenance Free

• Material
• AISI 304, AISI 316, CF8, CF8M, Carbon Steel

• Media
• Other, Water, Oil, Gas, Steam

• Pin
• Not Applicable (Pinless Construction)

• Port Size
• DN 15 to DN 300 (1/2 to 12)

• Power
• Other, Manual (Non-powered)

• Pressure
• Other, PN16/PN40/PN64/Class 150/Class 300

• Sealing
• Soft or Metal-to-Metal

• Structure
• Other, Wafer Type

• Temperature
• -10C to 220C

• Type

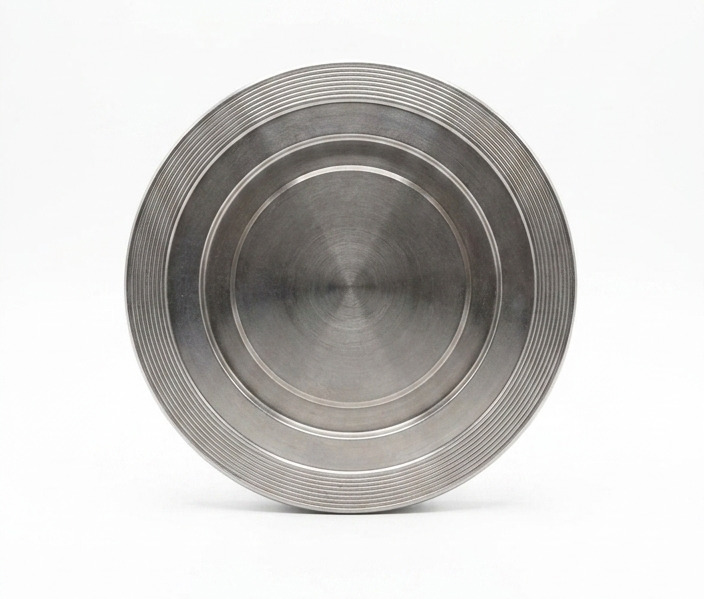

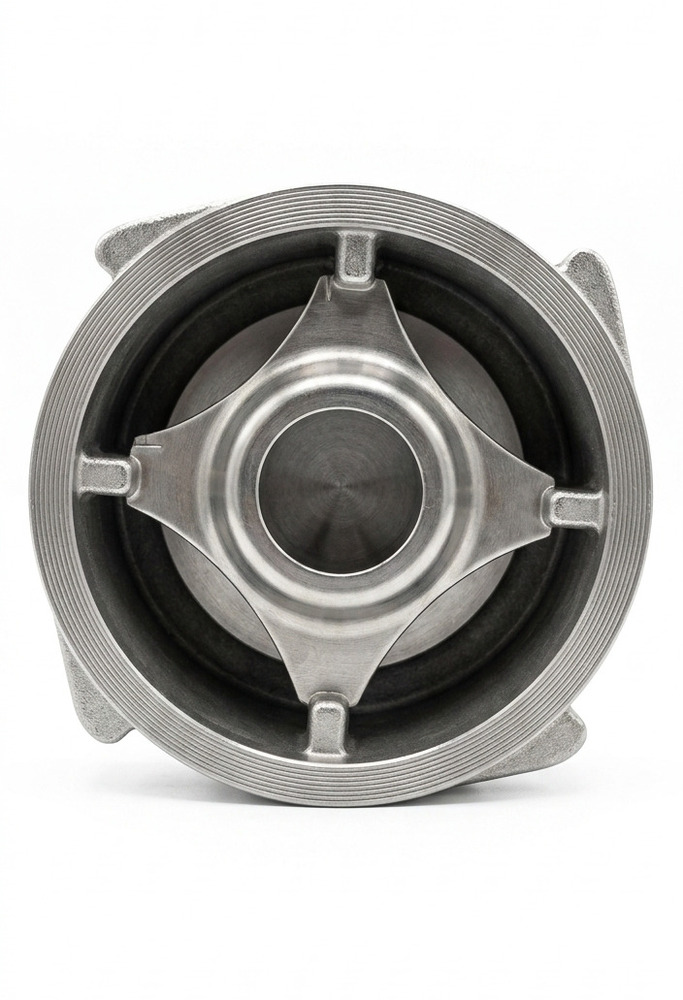

• Non-return Disc Check Valve

• Valve Size
• 15mm to 300mm

• Valve Type
• Check Valve

• Application
• Industrial fluid control, Water supply, HVAC, Pumping stations, Chemical processing

• Connection Type
• Wafer type, Fits between flanges

• Control System
• Flow-actuated (automatic operation)

• Disc
• Stainless Steel, Ductile Iron or Alloy coated

• Features
• Compact design, Low pressure drop, Easy installation, Maintenance-free

• Material
• Body: Cast Iron, Ductile Iron, Stainless Steel

• Media
• Other, Water, Oil, Gas, Air, Corrosive fluids

• Pin
• 1-piece disc hinge pin

• Port Size
• DN40 to DN300 (custom sizes available)

• Power
• Other, Manual (non-powered)

• Pressure
• Other, PN10, PN16, PN25 (max 25 bar)

• Sealing
• EPDM, NBR, or FPM seat options

• Structure
• Other, Single disc, wafer-type

• Temperature
• -10C to 180C (varies by seal and material)

• Type

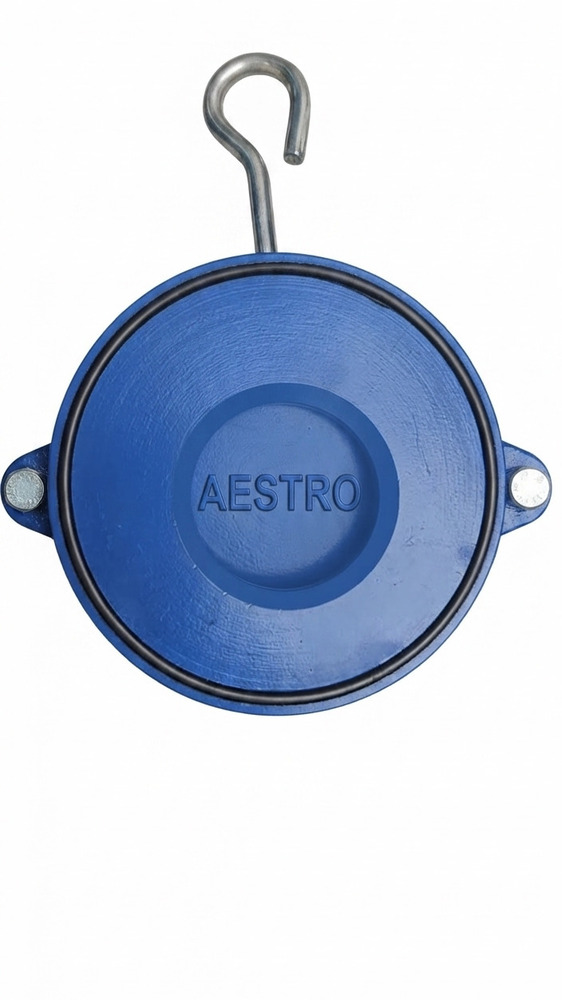

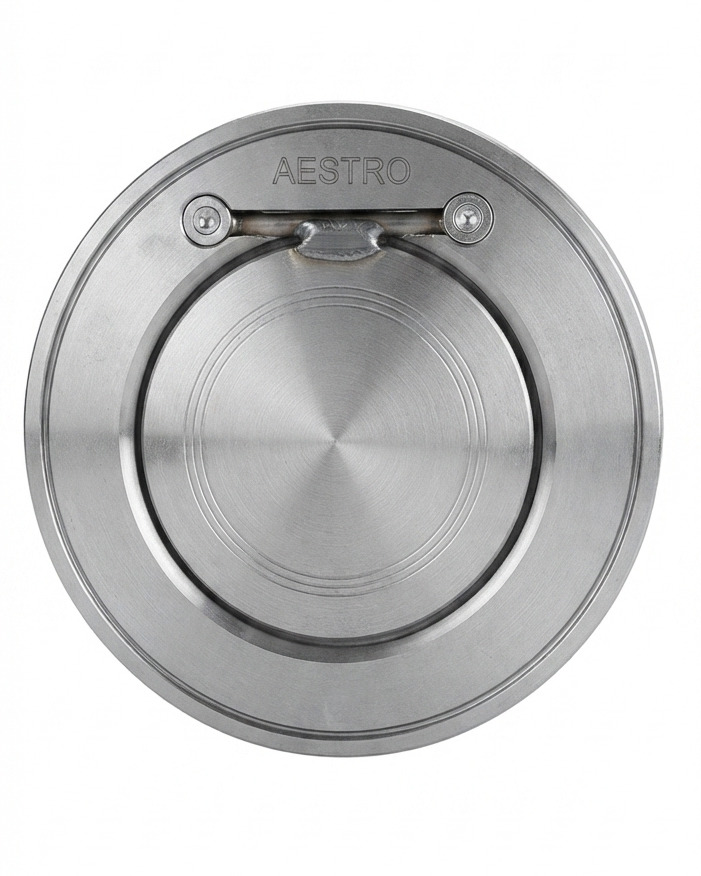

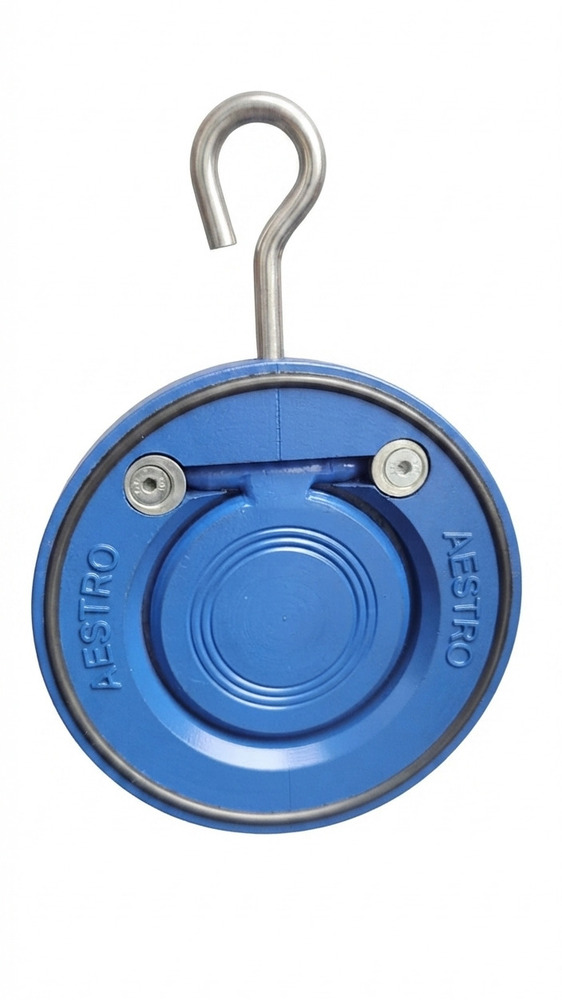

• Wafer Check Valve

• Valve Size
• 112 - 12 (depends on variant)

• Valve Type
• Non-return, check valve

• Application
• Suitable for Water, Oil & Gas, Steam, and Industrial applications

• Connection Type
• Flanged Ends (ANSI/DIN standards)

• Control System
• Self-acting (flow actuated)

• Disc
• Swing type, usually stainless steel or cast iron

• Features
• Low pressure drop, easy maintenance, robust construction

• Material
• Cast Iron, Cast Steel, Stainless Steel, Alloy Steel

• Media
• Other, Liquids, Gases, Steam

• Pin
• Steel or Stainless Steel

• Port Size
• 2 inch to 24 inch (Standard sizes)

• Power
• Other, Manual (Non-actuated)

• Pressure
• Other, Class 150 to Class 600

• Sealing
• Metal to Metal or Soft Seated

• Structure

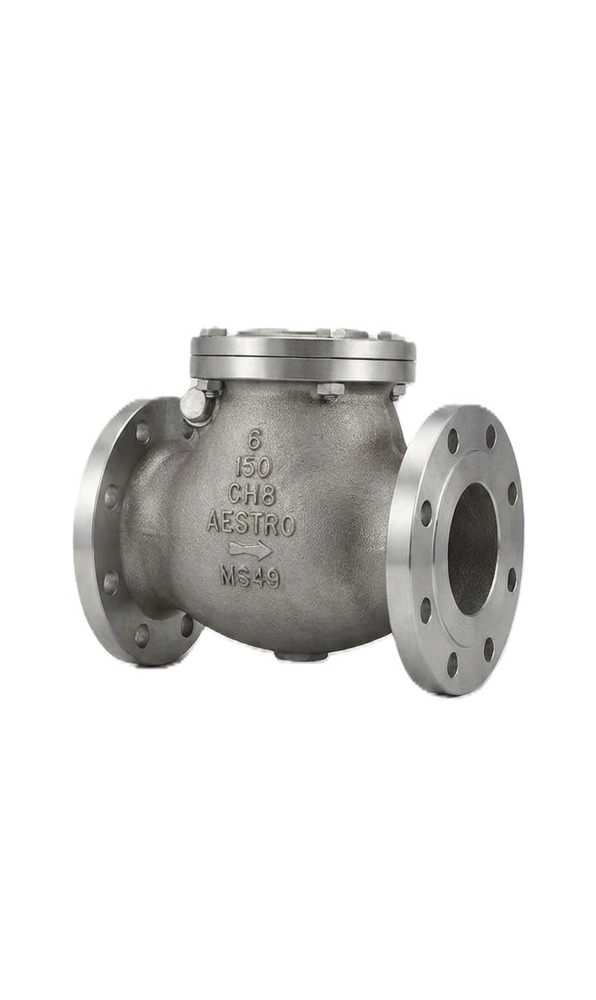

• Other, Swing check valve, bolted cover

• Temperature
• Up to 400C (subject to material)

• Type
• Non-return, Flanged End

• Valve Size
• DN50 - DN600 (2 - 24)

• Valve Type
• Check Valve

• Voltage
• Not Applicable (Manual Valve)
