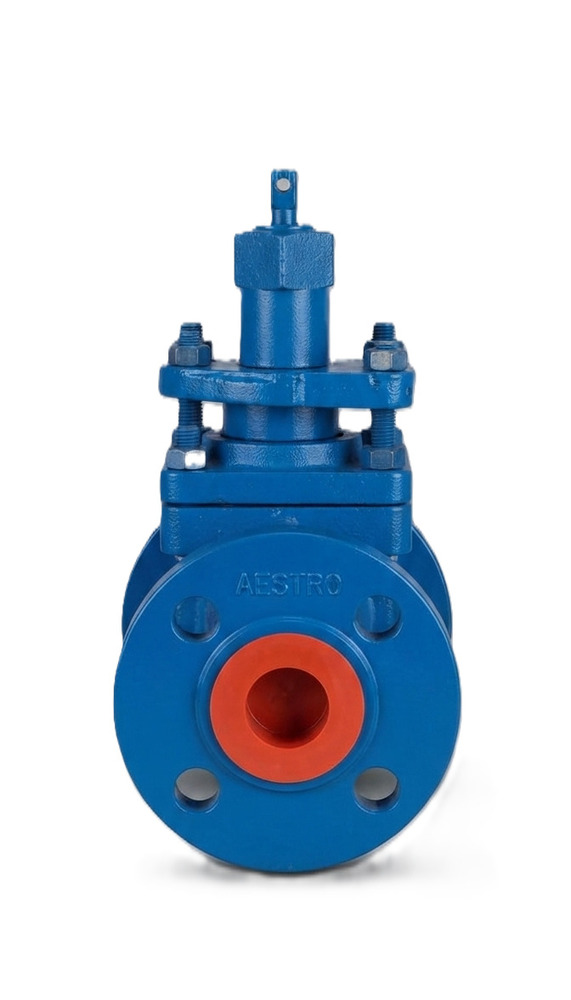

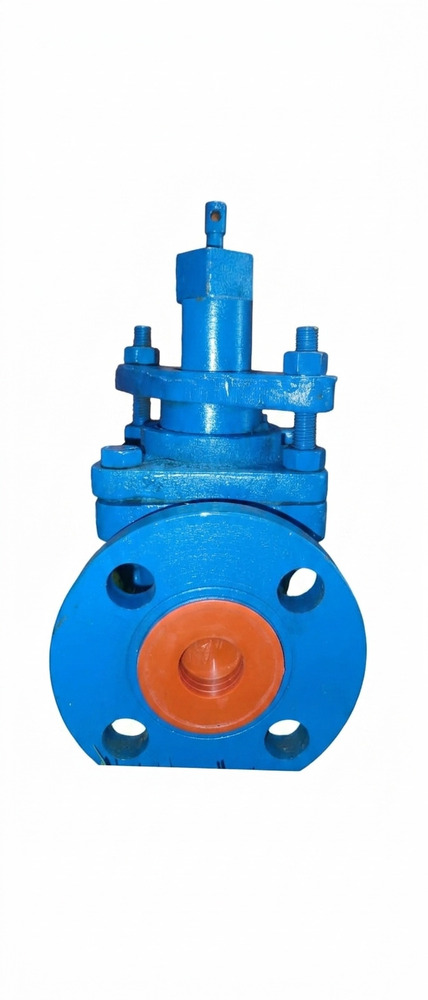

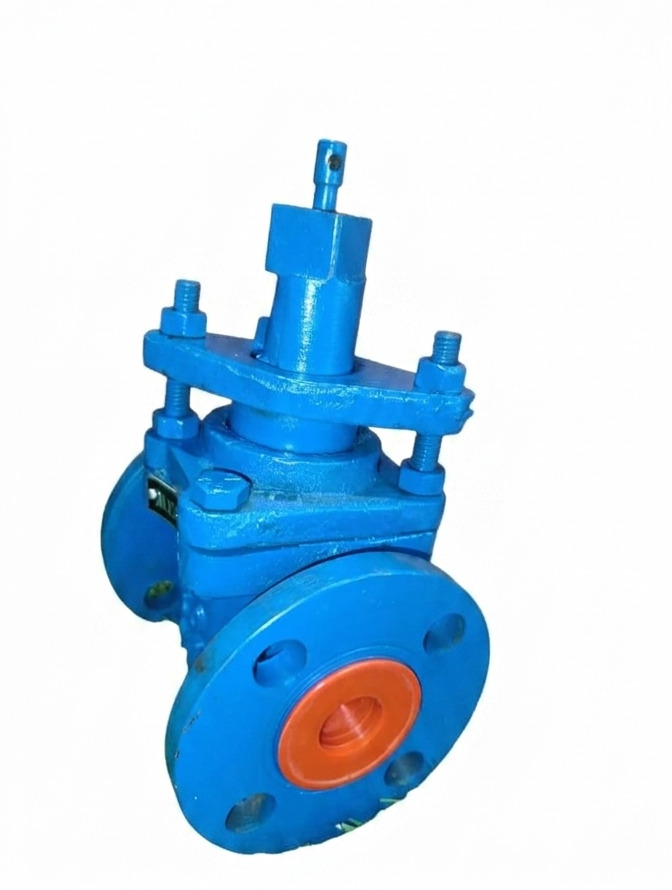

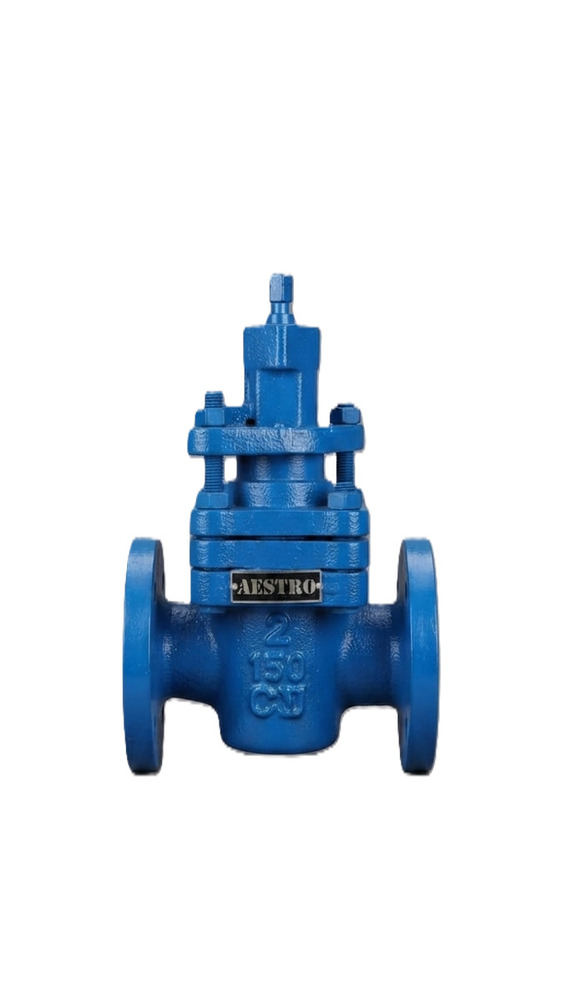

Plug Valve

Get a Price/Quote

MOQ : 1 Unit

Plug Valve Specification

Size
1 to 24 (DN25 - DN600)

Application
Industrial, Chemical, Water Treatment, Oil & Gas, Plumbing

Sealing
PTFE / Metal to Metal / Elastomer Seated

Connection
Flanged / Screwed / Socket Weld

Material
Cast Iron / Ductile Iron / Stainless Steel

Valve Structure
Flanged Plug Valve

Media
Water, Gas, Oil, etc.

Temperature of Media
-10C to 180C (Approx.)

Weight
Varies by size (e.g. 10-30 kg)

Dimension (L*W*H)
Depends on size (e.g. 200mm x 180mm x 300mm)

Power Mode
Manual

Handle Type
Lever / Gear Operated

Operation
Quarter Turn

Body Color
Blue (Epoxy Coated)

End Connection Standard
ANSI, DIN, BS

Coating
Epoxy Powder Coated

Leakage Class
Class VI (Bubble Tight Shut-Off)

Testing Standard
API 598 / EN 12266

Port Type
Full Port / Standard Port

Working Pressure
Up to 16 Bar (PN16)

Face to Face Standard
ASME B16.10 / DIN EN 558

Plug Valve Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Plug Valve

Grab Yours now-our elite Plug Valve, the special choice for professionals demanding optimum control. Designed to withstand working pressures up to 16 Bar (PN16), this towering solution features ANSI, DIN, and BS standard end connections and a robust epoxy powder-coated blue finish. Engineered for bubble tight shut-off (Class VI) and tested per API 598/EN 12266, these valves excel in water, gas, and oil applications. Available from 1" to 24", with cast iron, ductile iron, or stainless steel bodies, standard or full port types, and both lever and gear operation for superior performance.

Versatile Industrial Plug Valve-Supreme Performance Everywhere

Used for controlling and isolating water, oil, and gas, our Plug Valve finds application in chemical plants, water treatment facilities, oil & gas operations, and plumbing networks. Its full-port, bubble-tight shut-off ensures minimal leakage, making it a top choice for critical industrial operations. The valve's quarter-turn operation and durable materials offer impressive longevity and reliability, while its adaptability to varied installation standards provides a distinct deployment advantage across diverse settings.

Sample Availability & Export Terms-Swift and Convenient

Plug Valve samples are available for evaluation-request a quotation today for quick dispatch. Our flexible payment terms are designed for your convenience, with seamless transportation options to main export markets like the Middle East, Africa, Europe, and Southeast Asia. We prioritize timely deliveries and reliable service, ensuring your orders reach you efficiently. For businesses seeking optimum quality and logistics support, our sample program and export procedures set us apart in the industry.

FAQ's of Plug Valve:

Q: How does the plug valve ensure a bubble-tight shut-off in industrial settings?

A: The plug valve is engineered to Class VI leakage standards, utilizing high-quality sealing materials such as PTFE, metal-to-metal, or elastomer seats, ensuring a bubble-tight shut-off for zero leakage across water, gas, and oil media.

Q: What materials are available for the plug valve's construction?

A: You can select from cast iron, ductile iron, stainless steel, or other specialty materials based on your application's needs, offering robust resistance to corrosion and performance in demanding environments.

Q: When should I choose full port versus standard port plug valve types?

A: Full port valves allow maximum flow and minimal pressure drop, ideal for systems requiring higher capacity. Standard port valves suit general applications where lesser flow rates are acceptable and cost optimization is a priority.

Q: Where can plug valves be best utilized within industry sectors?

A: Plug valves are widely used in industrial, chemical processing, water treatment, oil & gas, and plumbing systems, owing to their versatility, quick operation, and reliable sealing features.

Q: What is the process to obtain a sample and quotation?

A: Simply contact us with your specifications. We will provide a prompt quotation and arrange quick dispatch of the plug valve sample, ensuring you can evaluate the fit and quality before placing bulk orders.

Q: What are the main advantages of your plug valve design?

A: Our plug valves offer optimum sealing, corrosion-resistant construction, easy quarter-turn operation, adaptability to global connection standards, and are designed for a long service life with minimal maintenance.
