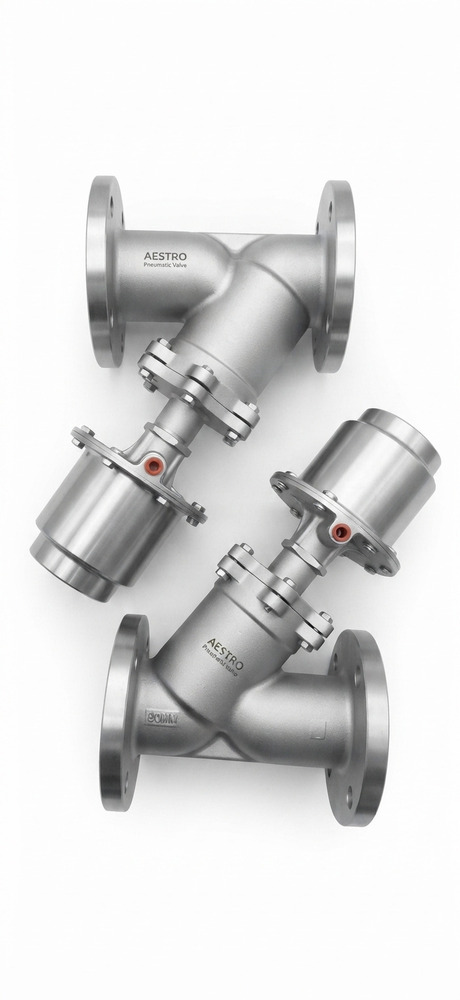

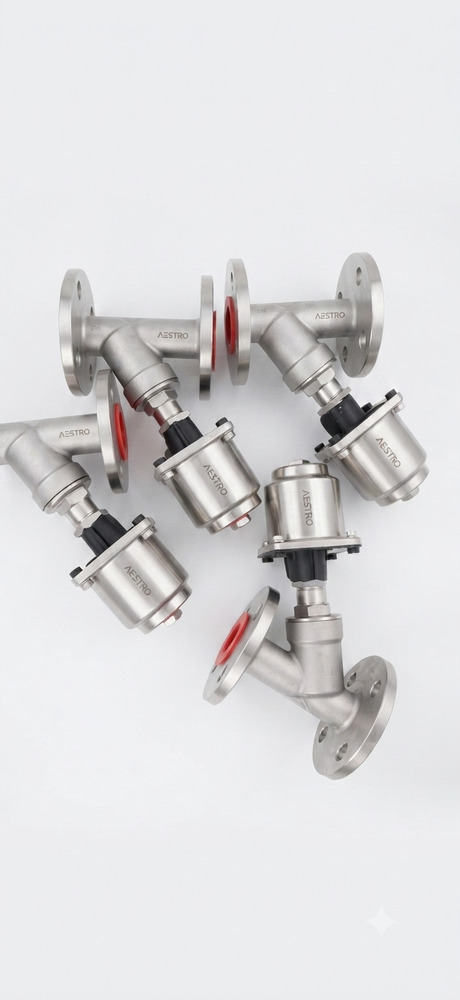

Pneumatic Angle Seat Valve

Get a Price/Quote

MOQ : 1 Unit

Pneumatic Angle Seat Valve Specification

Connection Type
Flanged (also available in threaded ends or tri-clamp as per request)

Valve Type
Pneumatic Operated Angle Seat Valve

Material
Stainless Steel (SS304 / SS316), optional brass body for certain models

Features
Fast switching, maintenance-free, high cycle life, low flow resistance, visual position indicator

Control System
Single Acting or Double Acting Pneumatic Actuator

Valve Size
15mm to 100mm (1/2 to 4)

Voltage
Not Applicable (Pneumatic Actuator)

Structure
Angle Seat, Flanged body

Sealing
PTFE, EPDM, or Viton (per application)

Application
Industrial automation, fluid control systems, steam, air, water, oil pipelines

Type
Angle Seat Valve

Power
Pneumatic

Pressure
0 to 16 bar (standard), up to 25 bar available

Media

Port Size
DN15 to DN100 (customizable per application)

Temperature
-10C to 180C (depending on seal and body material)

Disc
Stainless Steel

Noise Level
Low, suitable for silent operations

Mounting Position
Any (preferably actuator upright)

Actuator Material
Aluminum alloy

Life Cycle
Over 1,000,000 cycles (with proper maintenance)

End Connection Standard
ANSI, DIN, JIS flanges customizable

Compliance
Meets international standards for industrial valves

Actuation Time
Rapid (typically <1s for full stroke)

Body Finish
Precision cast and polished

Accessories
Solenoid pilot valves, proximity switches, manual override available

Operation Mode
Normally closed (default), normally open on request

Stroke Limiter
Available for precise actuation

Flow Direction
Bi-directional or as marked on valve body

Maintenance
Top entry design for easy servicing

Pneumatic Angle Seat Valve Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Pneumatic Angle Seat Valve

Fresh from the laureate line of industrial innovations, our Pneumatic Angle Seat Valve is sensationally engineered for heroic performance. Precision cast and polished, it's designed with a robust aluminum alloy actuator and a body structure optimized for any mounting position. Personalize your procurement with bi-directional flow, ANSI/DIN/JIS flanges, and access to custom sizes. Experience maintenance-free, rapid switching, a visual position indicator, and over 1,000,000 cycles. Heroically silent, fast, and adaptable, it meets international standards, bringing champion-grade reliability to your automation and fluid control systems.

Versatility and Features

The Pneumatic Angle Seat Valve is a multi-talented marvel suitable for industrial automation, fluid control, steam, water, air, oil, and even corrosive pipelines. Key features include a top-entry design for easy servicing, a stroke limiter for precise actuation, and low-noise operations. Its maintenance-free construction and visual position indicator empower operators in diverse sectors such as process plants, chemical lines, and food processing, wherever reliability and precision must unite for optimal system flow.

Sample Policy & Global Standards

Evaluate our quality with a rated sample policy-product samples are available upon request, with a nominal charge and express shipping options for swift delivery. Every unit comes certified to meet international compliance standards, ensuring peace of mind and consistent performance. With robust export operations, our main market spans India, Southeast Asia, Europe, and the Middle East, making procurement for your application seamless and dependable through every stage of your supply chain.

FAQ's of Pneumatic Angle Seat Valve:

Q: How does the stroke limiter in the Pneumatic Angle Seat Valve enhance precision?

A: The stroke limiter allows you to set the maximum valve opening, which ensures precise flow control and repeatability in automated or manual applications.

Q: What accessories are available with the valve for different applications?

A: A variety of accessories are offered, including solenoid pilot valves, proximity switches, and manual overrides, all designed to extend functionality and provide solutions tailored to your system's needs.

Q: Where can the Pneumatic Angle Seat Valve be mounted within a system?

A: This valve supports any mounting position, though actuator upright is preferred for optimal operation and longevity, offering flexibility in system design.

Q: What is the process for procuring customized end connections?

A: When placing your order, you can specify required end connection standards (ANSI, DIN, JIS) as well as size and material options, ensuring the valve is delivered perfectly tailored for your application.

Q: What benefits does a top entry design provide during maintenance?

A: The top entry design ensures servicing and replacement of internal components are quick and hassle-free, reducing operational downtime and maintenance costs.
